Join us in Montreal on Oct 16 as HH Angus presents “Making a Super Hospital Work” at the Canadian Centre for Healthcare Facilities conference.

As the mechanical, electrical and security design engineers for CHUM, the HH Angus team has unique insight into what it took to successfully deliver the largest healthcare project in North America – the Centre hospitalier de l’Université de Montréal. Nick Stark, Marianne Lee and Phil Schuyler, principals of HH Angus and team leaders, will detail some of the key challenges and solutions for this mega hospital project. Conference attendees will also be able to tour public, clinical, mechanical and electrical facilities at CHUM.

HH Angus is engineering mechanical and electrical systems for three underground stations on the Metrolinx Eglinton Crosstown Light Rail Transit project – Mt. Pleasant, Bayview and Laird Stations. The ECLRT will run along a 19 kilometre corridor following Eglinton Avenue, including a 10 kilometre underground portion. Click here, to see the latest tunnel fly through video.

Lighting in healthcare centres requires balance between aesthetics and functionality. The right illumination is essential for medical staff to perform their duties and, as growing consensus suggests, aid in patients’ recovery. Bradford Keen speaks to architects and lighting specialists working across three continents about light’s healing properties.

From ancient Egyptians worshiping the sun god Ra to a parent parting the bedroom curtains of a moping teenager, light intuitively feels right. It is able to create perspective and alter moods. When intuition is verified by science, we feel vindicated by our innate wisdom.

Light has long been manipulated in effective design, but it is now permeating healthcare centres too. Gone are the days of bright, blue lights bearing down from above with the promise of sterility. Instead, the shifting ethos, backed by medical studies, has evolved to focus on how natural and artificial light can give patients a healthy glow.

“About five to ten years ago, healthcare design had a lot more of a clinical and institutional feel,” says Philip Schuyler. “People used really high colour temperatures – over 4,000k.” The electrical engineer at HH Angus explains that the industry now seeks to create a soothing environment mimicking someone’s home or a communal space, while balancing aesthetics, cost efficiency and functionality.

HH Angus and CanonDesign have undertaken a mammoth project. Spanning two blocks in downtown Montreal, the 21-storey Centre Hospitalier de l’Université de Montréal (CHUM) subsumes three existing facilities – Hôtel Dieu, Hôpital St Luc and Hôpital Notre-Dame – in what will be one of North America’s largest academic medical centres, spanning three million square feet. Phase one of the project, which includes the hospital and ambulatory building, was completed recently, while phase two’s office building is set for 2021. The healthcare district is set to teem  with social activity, boasting an amphitheatre,
natural green spaces and one of the country’s largest displays of artwork.

The direct health benefits of lighting – improved mood, reduced hospital stay, lower mortality rates, among others – are proven, as is light’s ability to help create a sense of shared calm for patients and their loved ones.

“Lighting makes people feel a lot more receptive to treatment,” Jocelyn Stroupe, director of healthcare interiors at CanonDesign, says. “Often, healthcare encounters are filled with anxiety. We want to be sure anyone who enters the building feels a sense of comfort.”

This mindset of making hospitals communal and homely spaces is relatively new but  gaining credence among architects.

“People usually go into healthcare facilities with humility,” says architect Joaquin Perez-Goicoechea. “They are searching for something; they need support and, if the building can help them achieve this, it brings satisfaction to all of us.”

This was the weighted starting point for the cofounder of AGi architects when designing the Hisham Al Alsager Cardiac Center in Kuwait. “People with chronic diseases require constant contact with doctors,” says Perez- Goicoechea. Their loved ones often spend many hours at their side or in the facility, which motivated the architect to design the centre as a place for social cohesion. “Light is extremely important for this. It must be a sanctuary,” he adds.

With red aluminium panels, the cardiac centre is designed and coloured – at the behest of the medical staff – to resemble a heart. Its large windows, on the north facade, open up to the dazzling blue of Kuwait Bay.

The multiple vertical skylights maximise natural light. Pollution and dust dictated their positioning. Placed flat and horizontally, they would have gathered too much grime, rendering them useless even with a stringent maintenance plan.

Lighting is a powerful “abstract and immaterial architectural tool,” says Perez-Goicoechea. “The issue is how you see the space as a structure on a sequence, which is identified by different lighting experiences depending on the use or character you want to give to that space.

“If you are going to be sitting in a waiting area for half a day, because this is the reality, you don’t want to be sitting under white, fluorescent lights. You want to be under warm ambient lighting that makes it cosier; it frames the space.”

The diffused ambiance of CHUM

AESTHETICS VERSUS FUNCTIONALITY

This is where striking a balance is essential. “It needs to be a safe environment,” Stroupe says, “and lighting has to be designed so staff can perform their job without issue.” With many hard surfaces in healthcare facilities, eliminating glare is just one necessary consideration as it will help reduce fatigue on the eyes.

It’s not only the staff, of course, but patients too. “They are often in their rooms or being transported through corridors lying on their backs,” Stroupe says. “We’d like to avoid having something in the ceiling shining in their eyes and causing discomfort.”

Nowhere is this balance between comfort and function more important than at the Dommartinlès-Toul, a short and long-term residential facility in France for people with epilepsy. While there aren’t any operational procedures being carried out, staff need to perform regular functions such as administering medication. The importance of this cannot be overstated, as was seen in a study from the early 1990s, where pharmacists’ prescription-dispensing error rate was heavily dependent on their workspaces being sufficiently lit.

A more pressing factor for epileptics is that stress – often noise and light – can be a major trigger for seizures.

“We concentrated on soft materials,” says Atelier Martel’s co-founder, Marc Chassin. The architect implemented sound absorption materials and low, non-aggressive beam lighting. The firm worked with two artists on the project to add gentle touches such as shallow, sphered indents on the external facade to pay homage to the tablet from around 600BC, considered the first written record of epileptic symptoms. Internally, a tapestry of wool acts as a centrepiece to create warmth and comfort.

“This attention to detail is very important for the people who live there,” he says. “In the bedrooms, we have really big windows that open widely, making the space feel larger, almost like a terraced area.”

A UK study from 2013 showed that patients’ length of stay in hospital was reduced by 7.3 hours per 100lux increase of daylight and, in 1998, a study of patients in a cardiac facility’s intensive-care unit found mortality rates were higher in dimly lit rooms.

An earlier study, published in Science in 1984, found patients in rooms with windows facing trees recovered 8.5% faster and required less pain medication than those with views of a brick wall.

At CHUM, there are multiple outside areas. Beyond the obvious benefit of being a place to breathe in revitalising air, they were also designed for those inside the building. “We wanted to provide people a green and healing view,” Stroupe says. “It is a very tight urban site with amazing views of the city, but this is a little more intimate.”

Lit naturally during the day and benefitting from artificial light spilling out from the inside of the building in the evening, Schuyler says they took a minimalist approach for the terraces. “There is very little specialist lighting in those terrace spaces,” he says, “but they were supposed to be more natural and comfortable.”

When natural and artificial light shine in perfect choreography, architects manage to create a “diffused ambiance”, says Perez-Goicoechea, where different sources of light react to alter the perception of space.

Studies have shown that daylight is not necessarily superior to artificial lighting but, rather, capitalising on a combination of the two yields the best results. At the epileptic care facility in France, Chassin says different sources of light are used but often with their origin concealed, rendering illumination a general impression rather than a location-specific function. “The idea of softness is in the architecture,” Chassin says, “but also in the technical aspects of light.”

Another essential function of light is how it empowers patients. “We gave people control  over their own lighting,” Chassin says. “It is important specifically for those with epilepsy because certain sorts of lighting and frequency can cause seizures.”

Even in situations where lighting does not directly impact a patient’s medical condition, it can afford them a greater sense of empowerment.

“Patients are in a stressful environment,” Schuyler says. “A big part of promoting wellness is being able to control their environment.”

A visitor bathes in natural light at the Dommartin-lès-Toul care home.

FIND THE WAY

In any healthcare facility, not least one the size of CHUM, clear navigation is essential. Staff need to find their way between departments, patients have to go for tests and therapy, and visitors wish to locate their loved ones with ease.

“Every encounter has to be understandable and clear,” Stroupe says. “The wayfinding aspect is immensely important and lighting plays a big role in how we can emphasise the passage of travel for people in this facility. Lighting needs to work to support the architectural design.”

The navigational aspect plays a huge role in epileptic patients’ comfort and orientation. In the aftermath of a seizure, patients will be muddled and confused. Using light, and external contextual cues such as the courtyards and trees outside, helps them reorient themselves, offering much needed succour.

Focusing on the human condition, architects can ensure lighting is used in healthcare centres to make the work of medical staff easier and more efficient, but also help improve the physical and psychological welfare of its patients. There may no longer be a need to invoke the power of Ra, but the benefits of light remain integral to human well-being.

Leaf Review Magazine
January 2017

The Toronto Zoo constructs a new Wildlife Healthcare Facility

The Toronto Zoo is Canada’s premier zoo and home to over 5,000 animals, including invertebrates and fish, representing 460 species from a variety of geographical regions around the world. Encompassing approximately 710 acres, the Toronto Zoo is Canada’s largest zoo and is divided into seven zoogeographic regions, ranging from the Americas, to Africa, Australasia and Eurasia.

The campus includes numerous support facilities dedicated to animal care, operations, maintenance and veterinary services. With the existing veterinary facilities dating back to 1974, the Toronto Zoo recognized the need for redevelopment and expansion. The mandate for the new Wildlife Health Centre is to provide a state-of-the-art facility for veterinary services, that will further the Toronto Zoo’s commitment to wildlife health, nutrition, species survival research, conservation and education.

Planning for the new centre commenced in 2011 with Diamond Schmitt Architects, in collaboration with animal healthcare specialists Design Level, leading the team and preparing the architectural design for the new facility.

With a total gross area of 32,000 sq. ft., the new two-storey building would be located in the centre of the Toronto Zoo’s existing animal support complex and would be constructed in the footprint of the existing veterinary services building. Adjacent service buildings, including the existing Research, Animal Holding, Quarantine, and Conservation and Biology facilities, would connect to the new Wildlife Health Centre.

Design considerations

The functional program for the new centre would have to meet a variety of objectives, including: meeting the needs of the different animal species, taking into account diverse environmental requirements for the various habitats, providing a layout that promotes the effective delivery of ongoing healthcare services and meeting the requirements of the veterinary professionals who perform these services. Eric Lucassen, Project Architect at Diamond Schmitt, notes, “Working with the Toronto Zoo to create functional programming that supports animal healthcare, while meeting the unique habitat requirements for the various animals, involved a detailed planning process.”

The facility program for the Wildlife Health Centre is split over two floor levels and consists of animal treatment and surgical areas, diagnostic imaging, an intensive care unit, laboratories, animal holding areas, offices and support spaces, and a public viewing area. Animal holding areas are further divided into spaces for small and large animals, which require ceiling-high caging to provide safety for the staff.

Surgery and diagnostic imaging spaces are centrally located and are accessible via wider corridors to facilitate the easy transport of animals into these areas. A garage is located adjacent to the surgery area, and an electric hoist and hoist beam runs from the garage to the surgery area to help the transport of larger animals.

The majority of two-storey rooms have large clerestory (windows just below the ceiling) around the perimeter of the spaces. This architectural feature allows a significant amount of daylight to enter the interior of the building and creates the feeling of being in an open, natural environment. Laboratories and support spaces are located in close proximity with animal care areas to minimize travel distances for support services.

Mechanical considerations

Given the varying functionalities and diverse environmental requirements of the different spaces, a number of innovative applications of mechanical and electrical systems were incorporated in the building’s design. The holding area for fish and reptiles required that tropical temperatures be consistently maintained throughout the year, maintaining 100% relative humidity. Electric heat tracing cable, specifically modelled for the application by Tyco Thermal Controls, was installed in the slab to ensure that the temperature in the area would be maintained during winter months. While the electric heat tracing cable maintained a heat pad for reptiles, additional radiant floor heating was used to maintain the environment and create general floor comfort for animals.

Ventilation systems in animal care areas throughout the facility rely on a continuous 100% fresh air supply, with no return air, to ensure that contaminants and excrement are not circulated through the ventilation system. A heat recovery system was provided on the exhaust air system to increase energy efficiency. Animal surgery areas utilize a dedicated supply air system, which incorporate air change requirements and filtration comparable to the requirements for a human healthcare facility. By utilizing a separate, dedicated supply air system for surgery areas, energy efficiency is maintained in areas that require fewer air changes per hour.

Other energy efficient elements in the design included the use of low flow plumbing fixtures, roofing and landscaping features that promote heat island reduction for the site and the use of insulated glazing that provides an optimal balance between daylighting and heat transfer.

Electrical and lighting requirements

Unlike hospitals where patient care equipment is standard and there are prescribed standards for electrical circuiting requirements, animal care areas have speciality equipment items, and require multiple dedicated circuits and receptacles. Additionally, animal care areas were considered wet environments, due to the frequent washing that occurs after animals are returned to their habitats.

Ground fault circuit interrupter (GFCI) receptacles were used in these areas to maintain electrical safety. Lighting fixtures throughout the facility were selected to provide both illumination requirements for animal care and were vapour tight, to maintain infection control practices and protect luminaires from inadvertent spray during cleaning.

Occupancy sensors and multiple light switches were used throughout the facility to give users a wide range of automatic and manual lighting control, which allow lights to be turned off when there is enough daylight present through windows and clerestory.

To avoid interference with full height cages, architectural clerestories, and to minimize the likelihood of interaction with animals, overhead mechanical and electrical services were routed outside of animal care areas and confined to corridor spaces. This created several installation coordination issues that were resolved by the contractor, via the creation of detailed interference drawings during the construction phase of the project.

Nearing completion

The project was competitively tendered and awarded to Gillam Group Inc., with construction commencing in February 2015. The new building is in the final phases of construction and is scheduled to be complete during the first quarter of 2017.

Working on an animal healthcare facility designed to accommodate a variety of different species, with diverse requirements, proved to be a unique challenge.

While healthcare standards are readily available for hospital construction, there are minimal design and construction standards available for this type of animal care facility. Environmental standards established by the Canadian Council on Animal Care and general healthcare design experience contributed to the overall design.

Furthermore, involving the users throughout the project was critical in identifying the unique needs of various animal groups. Eric Lucassen notes, “Having the Toronto Zoo’s veterinary staff provide input into specific design requirements at every step of the project helped the design team develop innovative solutions to provide an enhanced animal care environment.” CCE



Philip Chow, P.Eng., P.E. is a senior project manager at H.H. Angus & Associates Ltd., Philip.Chow@hhangus.com

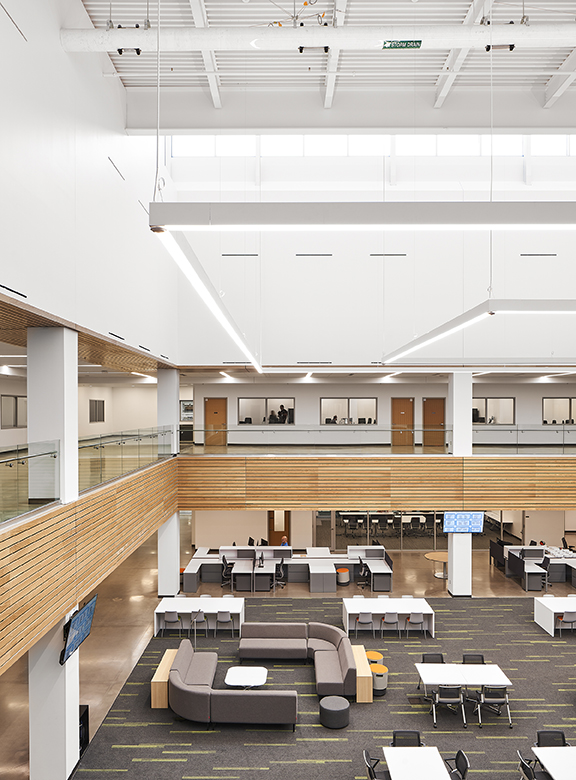

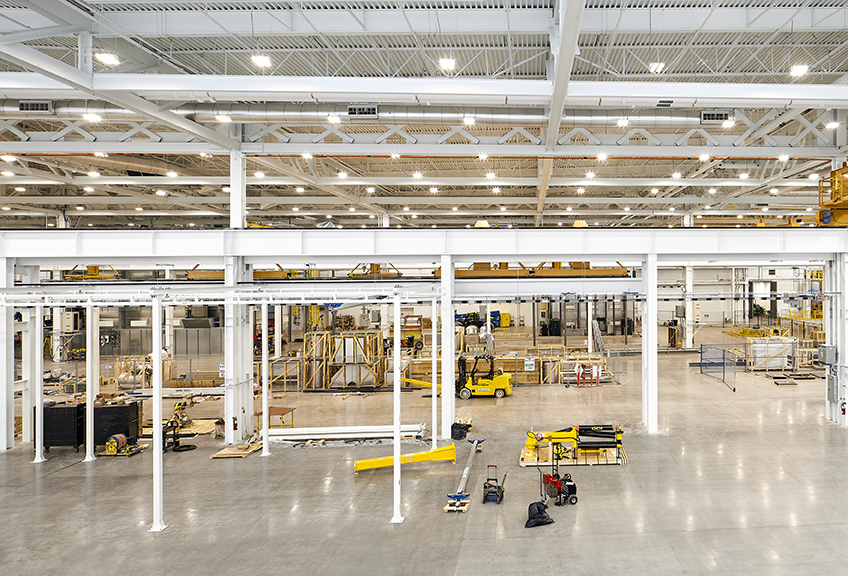

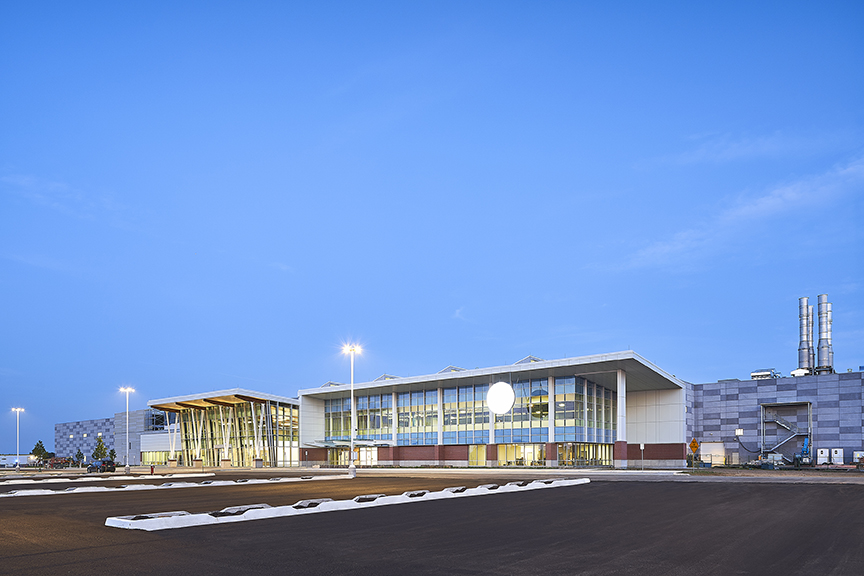

HH Angus is pleased to be working with B+H Architects and CSO Architects out of Indianapolis on this exciting project. The Welland plant is a full-service MEP engineering role for us, including mechanical, electrical, plumbing, security, IT, vertical transportation and lighting.

WELLAND, ON, Aug. 26, 2016 /CNW/ – GE (NYSE: GE)

Premier Kathleen Wynne and the Honourable Chrystia Freeland, Federal Minister of International Trade, joined GE global executives and representatives from Welland and the Niagara Region in a ground-breaking ceremony celebrating the start of construction for GE’s multi-modal “Brilliant Factory” in Canada. The facility is expected to create 220 jobs with operations commencing in early 2018. The first phase of the investment is 65M US.

This first–of-its-kind facility in Canada will combine decades of experience building innovative industrial machines with cutting-edge data science and analytics expertise to enhance efficiency and streamline production.  The facility will initially manufacture GE Power’s reciprocating gas engines, components for compression, mechanical drive, and power generation, and manufacture components for GE transportation diesel engines. The multi-modal design enables future production expansion for other GE global businesses including Power, Oil & Gas, and Transportation.

Welland’s close proximity to the US border, availability of skilled labour and education facilities were important considerations in the location of the factory. Architectural and design companies selected by GE for the project include HH Angus, B+H Architects, CSO Architects, Lea Consulting and Thorton Tomasetti. PCL Construction is the general contractor.

Source:  Canada News Wire
